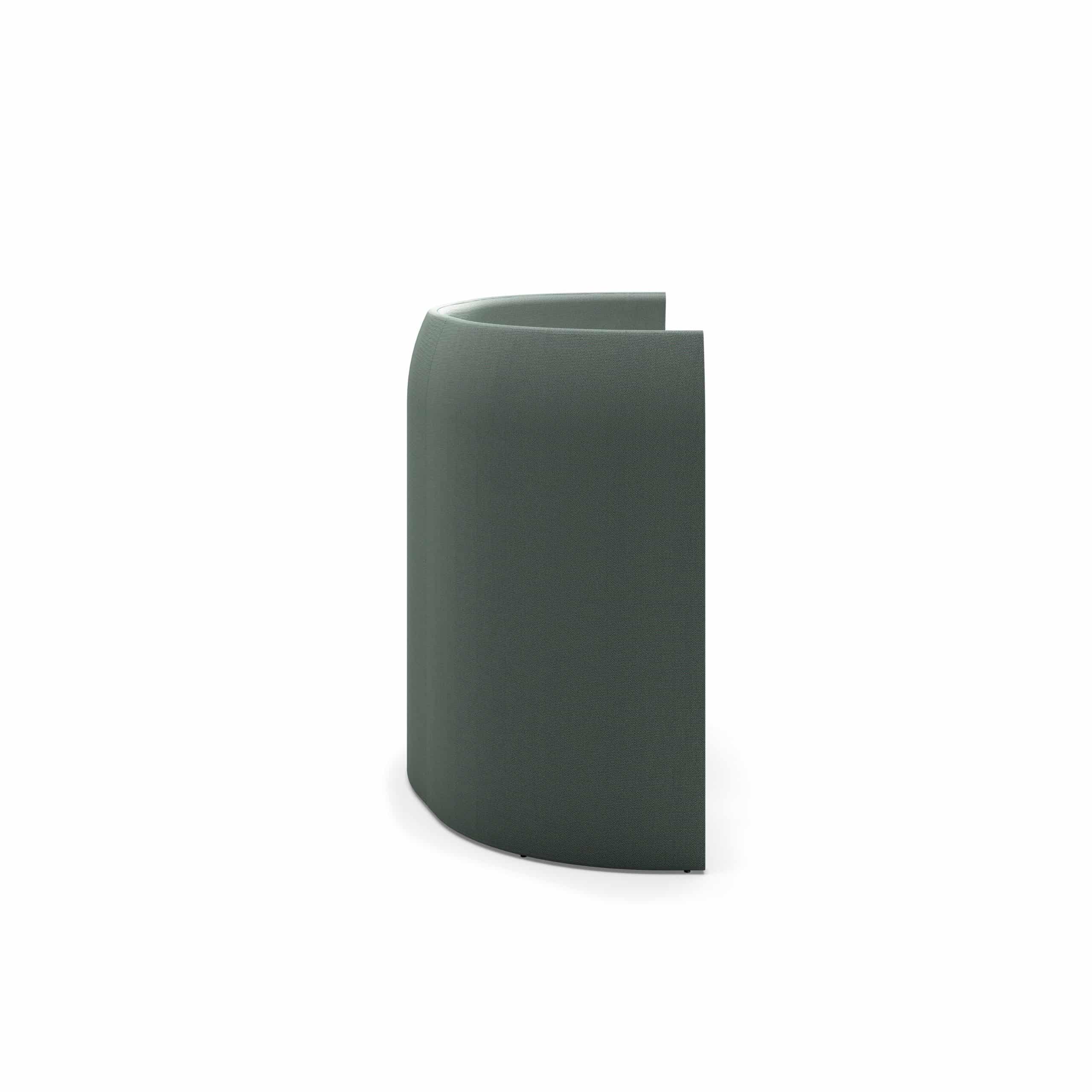

1 – External partition

Straight or curved panel depending on the module, curved at the top and available in two different heights (1.50 m, 1.70 m). Fully lined with fabric, single or two-tone to distinguish the inside from the outside of the bubble. The borders are elegantly finished with black or anthracite epoxy powder metal elements.

2 – Interior partition

Injected polyurethane foam with acoustic properties, 60 mm thick and 320 kg/m3 density. Reinforced with metal slats.

3 – Fixing

Metal “Quick-Lock” fastening system between two elements which allows the panels to be fitted and removed without tools for easier handling.

4 – Top

High resistance melamine top, 22 mm thick and with a density of +/-3% of 770kg/m3. Smooth or lightly textured melamine decor sheet, depending on the choice of finishes. 2 mm thick ABS edges as standard. The top is fixed by a metal squaring system.

5 – Seat

Curved bench that follows the shape of the Pentagon, made up of a wooden frame and a 55 mm thick polyurethane foam with a density of 38 kg/m3 for the seat and a thickness of 42 mm and density of 24 kg/M3 for the back. The bench is completely covered with fabric for optimal quality finishes.

6 – Legs

4 cm high PVC glides with adjustment jacks to compensate, if necessary, for unevenness in the floor

ELECTRIFICATION OPTIONS

Aluminium top access
Aluminium top access with tilting access
in slow motion for meeting stations.

Trunking
Fixed to the supporting structure and made from a 1 mm thick folded metal sheet.

Cable riser
Thermoformed mesh sock
